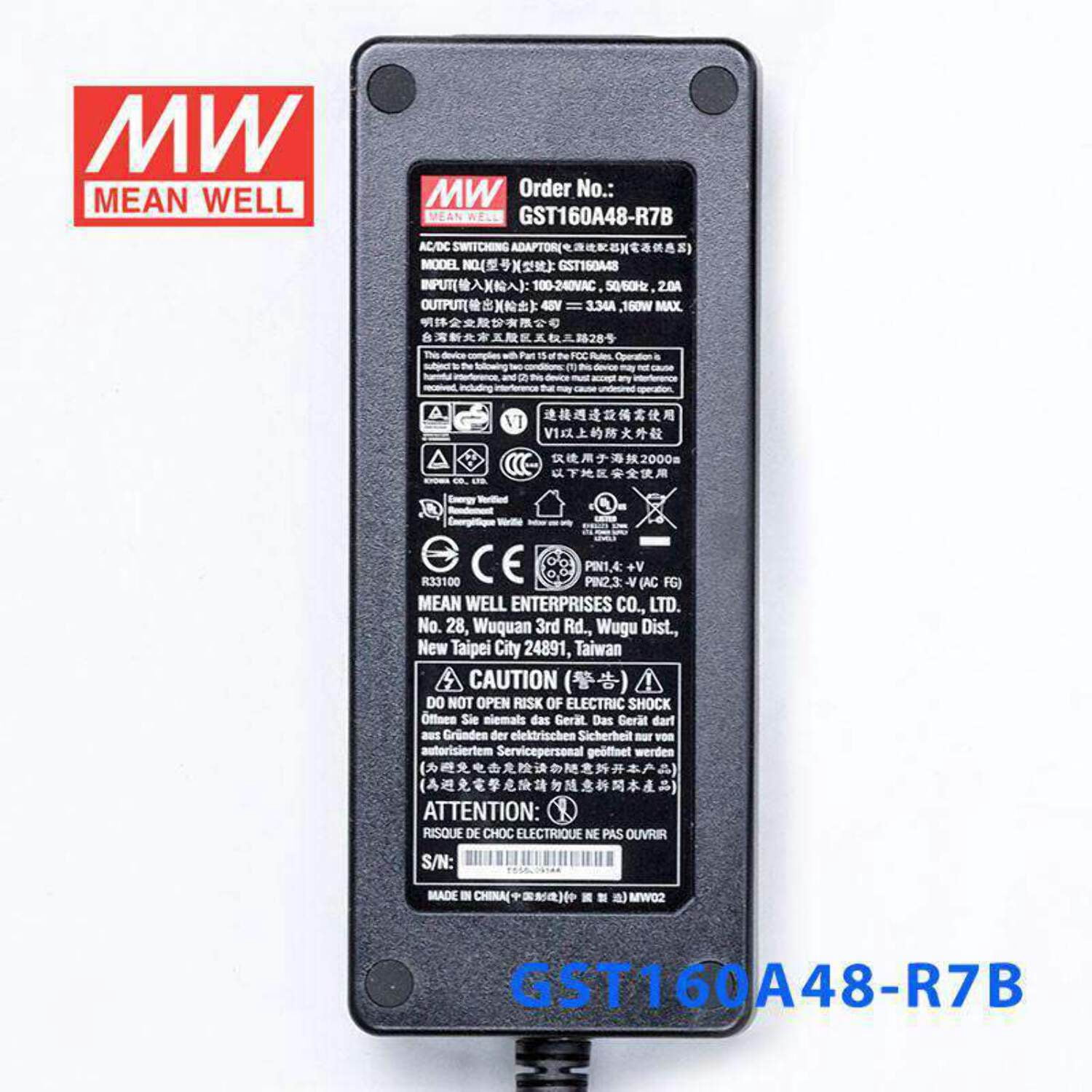

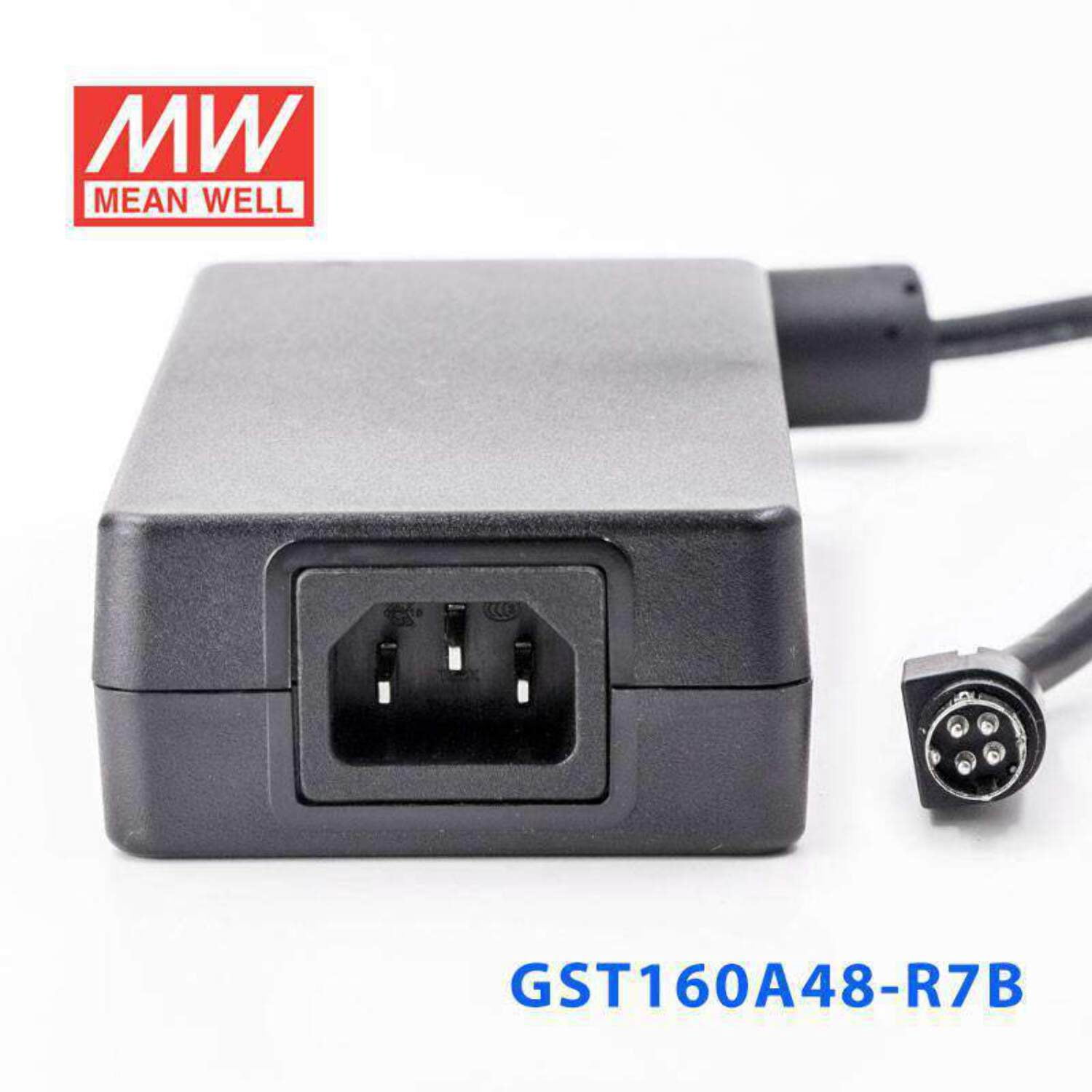

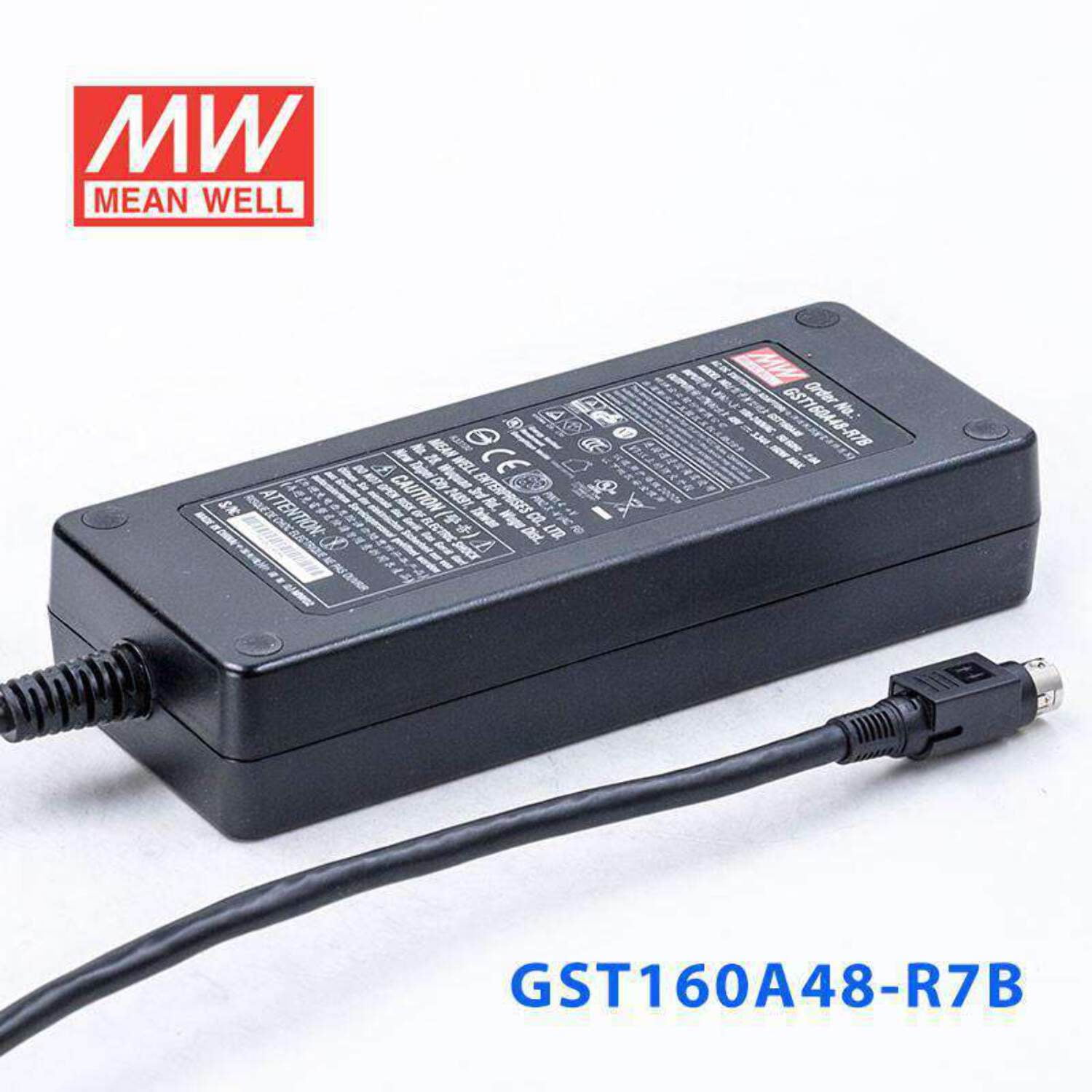

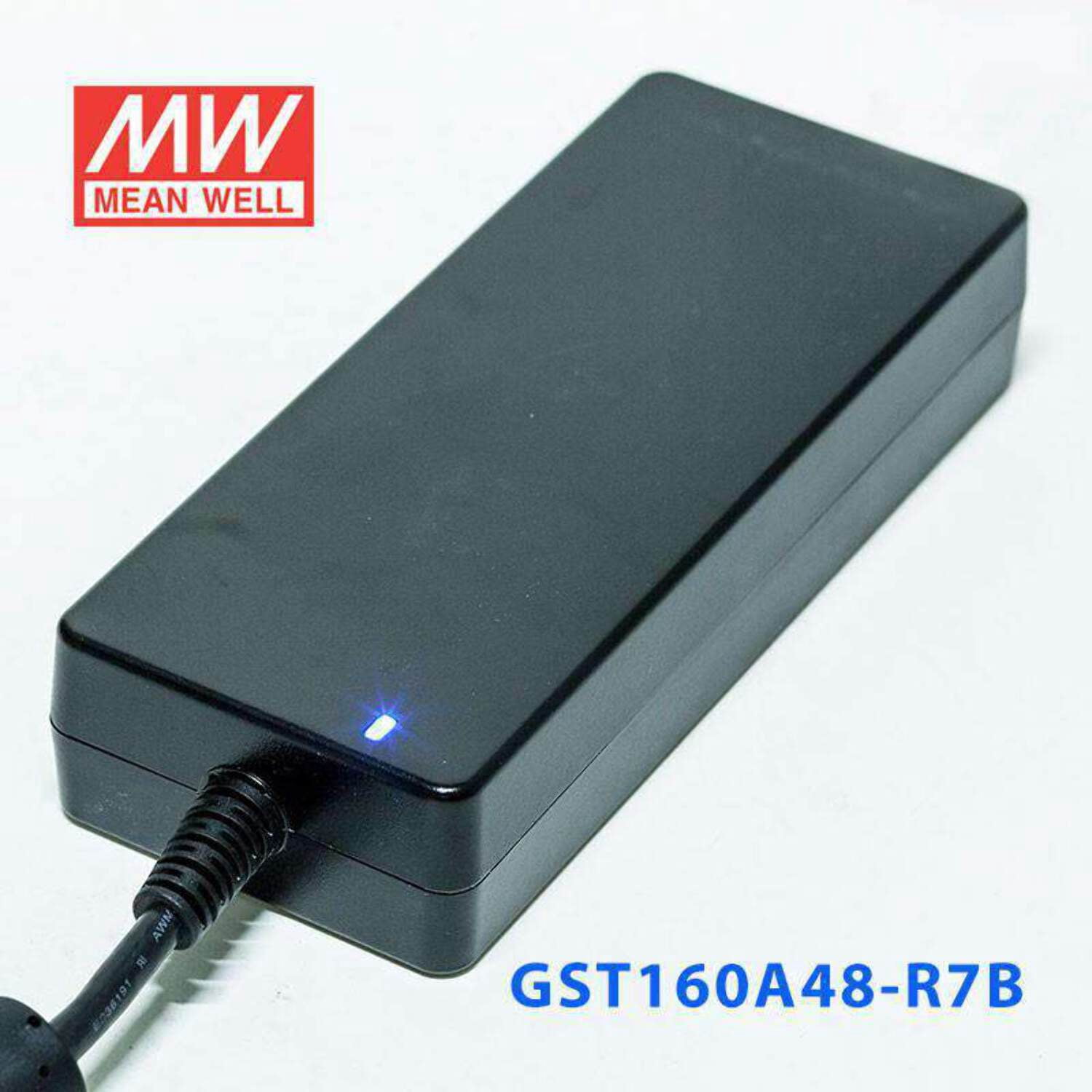

Mean Well GST160A48-R7B Power Supply 160W 48V

<em></em> Features<table><tbody><tr><td>Universal AC input / Full range</td></tr><tr><td>No load power consumption &lt; 0.15W</td></tr><tr><td>Energy efficiency Level VI</td></tr><tr><td>Meet EISA 2007 (Energy Independence and Security Act)</td></tr><tr><td>NRCan compliant</td></tr><tr><td>MEPS compliant</td></tr><tr><td>3 pole AC inlet IEC320-C14</td></tr><tr><td>Class I power (with earth pin) only</td></tr><tr><td>Protections: Short circuit / Overload / Over voltage / Over temp.</td></tr><tr><td>Fully enclosed plastic case</td></tr><tr><td>LED indicator for power on</td></tr><tr><td>Built-in active PFC function</td></tr><tr><td>Fanless design</td></tr><tr><td>3 years warranty</td></tr></tbody></table><br><br><em></em> General Specification<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>85~264VAC ; 120~370VDC</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 120A at 230VAC</td></tr><tr><td><strong>Overload protection Range</strong></td><td>105%~135% rated output power</td></tr><tr><td><strong>Overload protection Type</strong></td><td>Hiccup mode, auto-recovery</td></tr><tr><td><strong>Over voltage protection Range</strong></td><td>105%~135% rated output voltage</td></tr><tr><td><strong>Over voltage protection Type</strong></td><td>Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Hold up time</strong></td><td>20ms at full load</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P: 3kVAC, 1 minute</td></tr><tr><td><strong>Working temperature</strong></td><td>-30~+70°C<br></td></tr><tr><td><strong>Safety standards</strong></td><td>UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved</td></tr><tr><td><strong>EMC standards</strong></td><td>EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B, CNS13438, GB9254</td></tr><tr><td><strong>Length of output cable</strong></td><td>120cm of UL2464, 18AWGx4C</td></tr><tr><td><strong>Dimension (LxWxH)</strong></td><td>175x 72x 35 mm</td></tr><tr><td><strong>Standard DC plug</strong></td><td>R7B: Power DIN 4P with lock type</td></tr></tbody></table>
